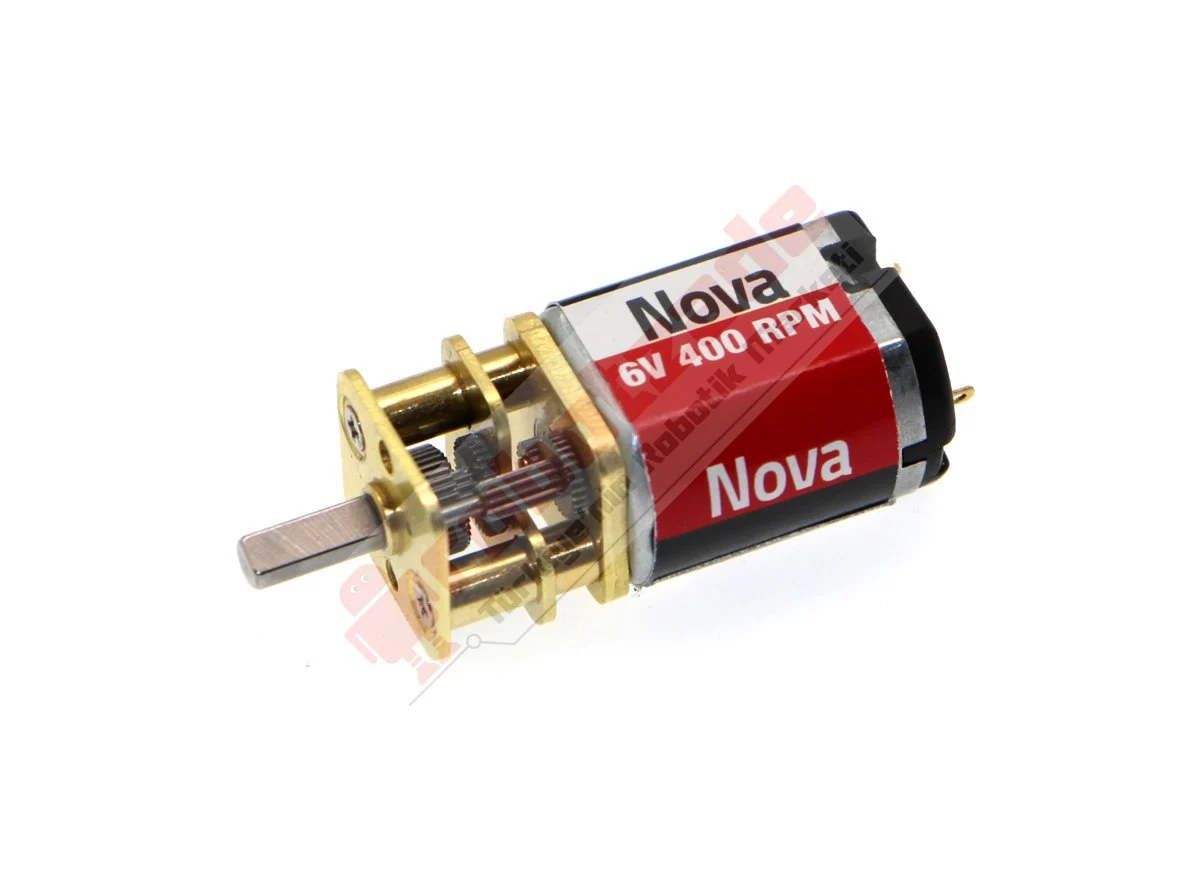

Nova 6V 400 RPM DC Motor
16,00 USD
Category
Product Code
XSFT53L44L
Price
16,00 USD
* Worldwide Shipping Available
Nova Designed for Professional High Power Mini Sumo Robot Projects
Nova Dc Motors will be the most popular Motors model for Mini Sumo Robot Competitions in the following years.
You can also use Nova Motor for projects need torque and speed. These micro gearmotors are used successfully in many industries due to their light weight and small size. You can give 12 volts and get higher torque and speed. The stopping torque of the motor is 6.5 kg / cm. We strongly recommend that , you can give high Voltage to reach High Torque and Power. Nominal voltage is 6v, but you can give 12v.
You can get Free Technical support from us to make the design of your robot. 7/24 Free Support and Technical Help
Technical specifications;
Operating Voltage: 6 to 13 Volts
Normal Operating Voltage: 6V
Maximum. Operating Voltage: 14V
Speed: 400Rpm (RPM)
No- Stall Current: 100mA
Operating Current: 240mA
Stopping Current: 1.65A
Rated Load Torque: 1.9 kg / cm
Stop Torque: 3.7 kg / cm
Motor Diameter: 16mm
Shaft: 3mm D Shaft Center Outlet
Shaft Length: 10mm
Length: 39 mm (Suitable for Mini Sumo Robot Competition Rules)
Weight: 21 gr
Note: Please refer to the Bond Silicone Wheel Set which we strongly recommend to use with this Motor.
Technical specifications;
Operating Voltage: 6 to 13 Volts
Normal Operating Voltage: 6V
Maximum. Operating Voltage: 14V
Speed: 400Rpm (RPM)
No- Stall Current: 100mA
Operating Current: 240mA
Stopping Current: 1.65A
Rated Load Torque: 1.9 kg / cm
Stop Torque: 3.7 kg / cm
Motor Diameter: 16mm
Shaft: 3mm D Shaft Center Outlet
Shaft Length: 10mm
Length: 39 mm (Suitable for Mini Sumo Robot Competition Rules)
Weight: 21 gr
Note: Please refer to the Bond Silicone Wheel Set which we strongly recommend to use with this Motor.
