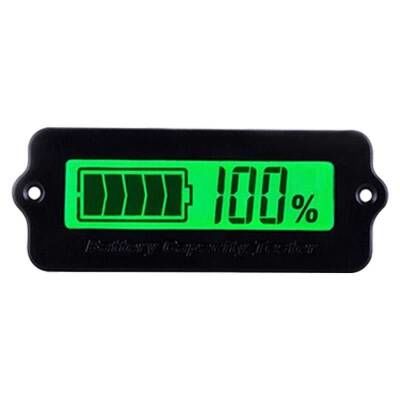

Lithium Battery / Battery Capacity Indicator 8-63V LY6W



Lipo battery, Li-ion battery, Battery capacity indicator. You can check the capacity of 1S-15S batteries, 12-48V (1-4P) batteries, 1F-19F LiFePO4 batteries. Simply connect the + and - terminals of your product to the + and - terminals of the socket on the back of the product. Then, you can choose your battery type and cell number with the button on the circuit. To select the battery type, we press and hold the button before making the connection and make the connection while it is pressed. After the battery type appears on the screen, you can select the battery you want by pressing the button. When you disconnect and reconnect the connection, it will make the measurement at the value you set.

-Max. Working voltage: DC 63V

-Screen color: Green

-Power consumption during operation: normally 8mA, max. 10mA

-Standby power consumption: 0.15 mA

-Power consumption during sleep: 15uA

-Voltage pickup accuracy: +/- 1%

-Capacity acquisition accuracy: +/- 1%

-Backlight current at 5 mA

-Working environment temperature: 0 ~ 40 ℃
