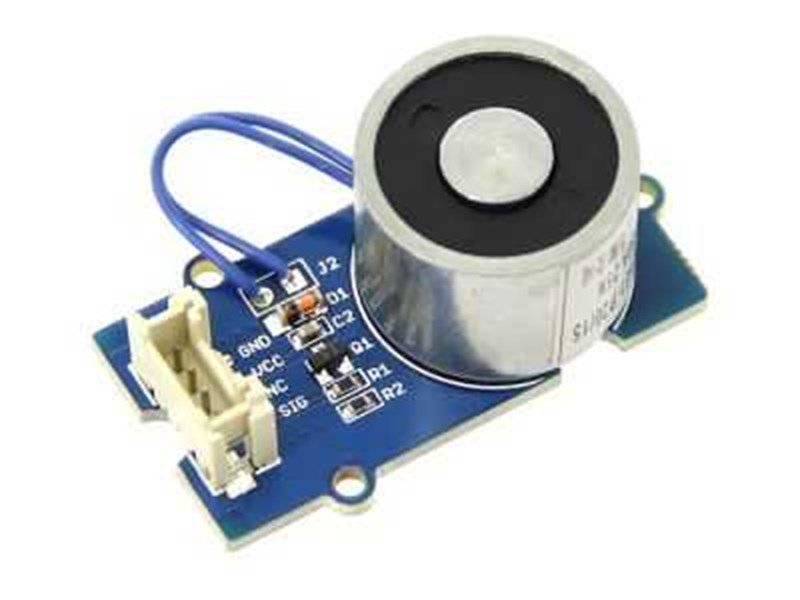

Grove Electromagnet
Description
An electromagnet is a type of magnet in which the magnetic field is produced by electric current. An electric current flowing in a wire creates a magnetic field around the wire, due to Ampere's law(see drawing below). To concentrate the magnetic field, in an electromagnet the wire is wound into a coil with many turns of wire lying side by side. The magnetic field of all the turns of wire passes through the center of the coil, creating a strong magnetic field there. Grove - Electromagnet can shuck 1KG weight and hold on. it easy to use, to learn electromagnet principle.
Features
Grove shape
1KG peak suction
Low standby current
Specification
Working Voltage ：DC 5V
Working Current ： 400mA
Standby current ： 200uA
Load Weight： 1KG
Documents
Please visit wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
