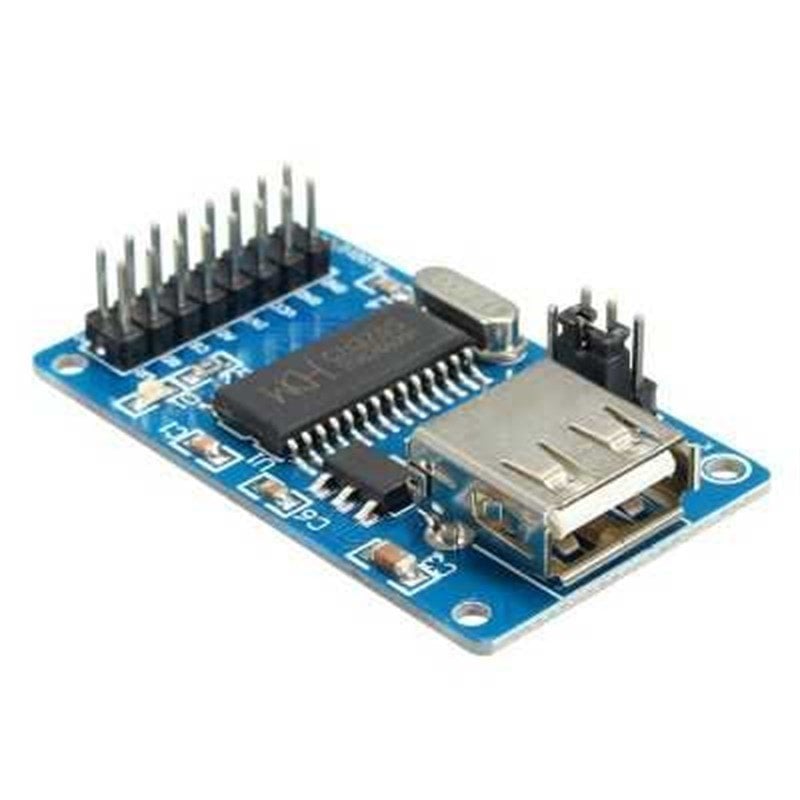

CH376 is common a USB bus interface chip, with 8 bit data bus and reading, writing and chip select lines and interrupt output, can easily attached to the system bus of the single chip microcomputer /DSP/MCU/MPU controller. In the USB host mode, CH376 also provides a serial communication mode, through the serial input, serial output and interrupt output connected with the MCU /DSP/MCU/MPU.
Features:
- 2x8 connection head, can be convenient to hang with MCU
- According to the jumper option, which can work in parallel or serial mode
- USB status indicator light
- Plate load LDO 3.3V 1117, to provide the maximum 800mA current
- 5.5V power supply by the target board
- 12MHZ crystal
- Size:47*27mm
CH376S datasheet
Sample Arduino project
