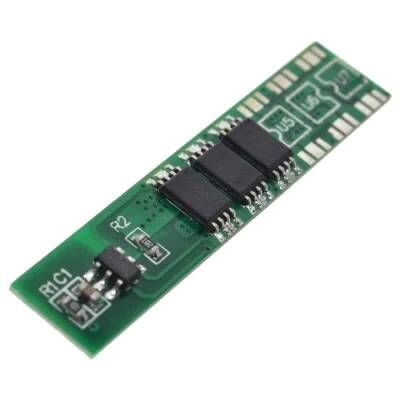

1S 6A 18650 & Lipo BMS Charging Circuit 3.7V - 4.2V
2,00 USD
Category
Product Code
GD9K9M5DWH
Price
2,00 USD
* Worldwide Shipping Available
1S 6A 18650 & Lipo Charging Circuit 3.7V - 4.2V
It is the charging circuit with which you can charge your rechargeable batteries. It has a charging cut-off feature when the charge is full. It has small size and high ampere capacity.
Circuit Features:
-Overcharge protection
-Over discharge protection
-Short circuit protection
-Overcurrent protection
-Overcharge detection voltage: 4.25 + 0.05 V
-Overcharge output voltage: 4.23 + 0.05V
-Discharge detection voltage: 2.45 + 0.1 V
-Max continuous current: 6A
-Overcurrent detection current: 7.5A
-Input Charging voltage: 4.2V
-IC components: DW01 + 8205A
Wiring instructions:
B+ battery positive
B - battery negative
P+ Positive Input
P - Negative Input
