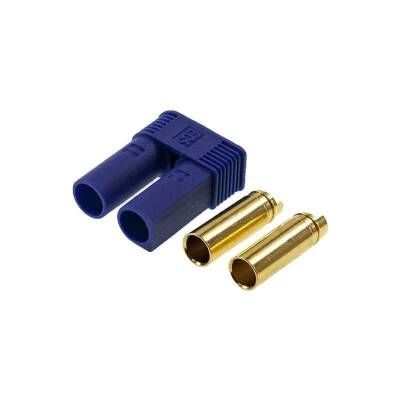

EC5 Connector Female
Female connector that can carry high current and can be used in drone, RC vehicle projects and various applications.
Technical Specifications:
Connector: Plug
Connector type: DC supply
Connector series: EC5
Connector type : Female
Number of pins: 2
Mechanical mounting: For cable
Electrical mounting: Soldered
Contact plating: Gold flash
Color: blue
Current rating: 90A
Rated voltage: 500V
Flammability rating: UL94V-0
Operating temperature: -20 ... 120 ° C
Spatial orientation: Straight
Contact material: Brass
Wire size: 10AWG
Housing material: polyamide
Mechanical durability: 1000 cycles
