Description:

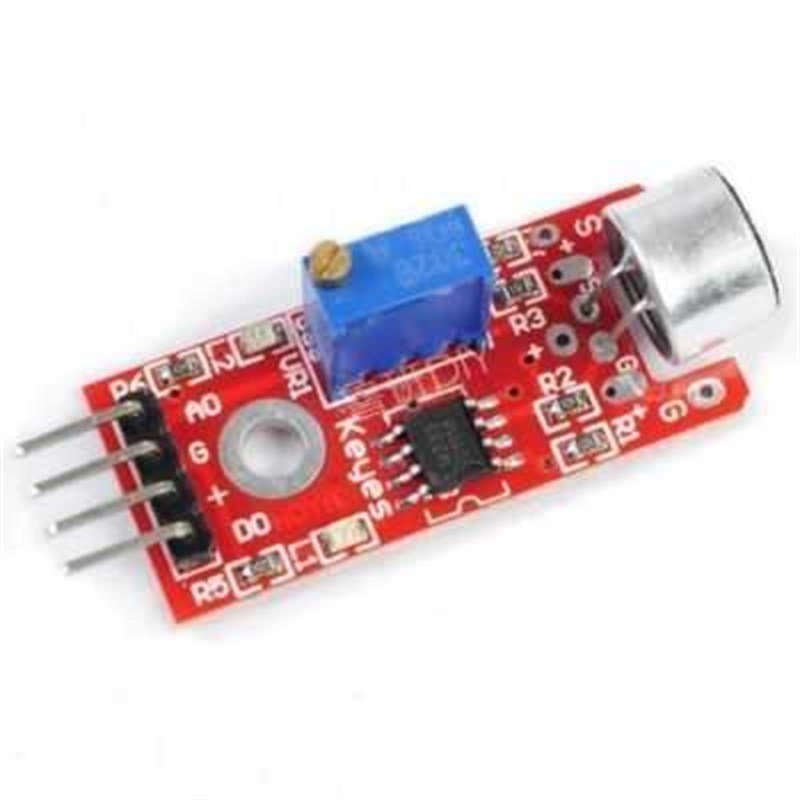

For sound detection module has two outputs:
1. AO, analog output, real-time output voltage signal of the microphone
2. DO, when the sound intensity reaches a certain threshold, the output high and low signal
Module features:
1. there is a mounting screw hole 3mm
2. the use 5v DC power supply
3. with analog output
4. there are threshold level output flip
5. high sensitive microphone and high sensitivity.
6. a power indicator light
7. the comparator output is light
Digital Output:
int Led=13;//define LED interface
int buttonpin=3 //Define D0 Sensor Interface
int val;//define numeric variables val
void setup()
{pinMode(Led,OUTPUT);// Define LED as output interface
pinMode(buttonpin,INPUT);//Define D0 Sensor as output Interface}
(void loop)
{val=digitalRead(buttonpin);//digital interface will be assigned a value of 3 to read val
if(val==HIGH)//When the light sensor detects a signal is interrupted, LED flashes
{digitalWrite(Led,HIGH)}else
{digitalWrite(Led,LOW)}
2. Analog Output:
int sensorPin = A5; // select the input pin for the potentiometer
int ledPin = 13; // select the pin for the LED
int sensorValue = 0; // variable to store the value coming from the sensor
(void setup)
{pinMode(ledPin, OUTPUT);
Serial.begin(9600);}
(void loop)
{sensorValue = analogRead(sensorPin);
digitalWrite(ledPin, HIGH);
delay(sensorValue);
digitalWrite(ledPin, LOW);
delay(sensorValue);
Serial.println(sensorValue, DEC);}
